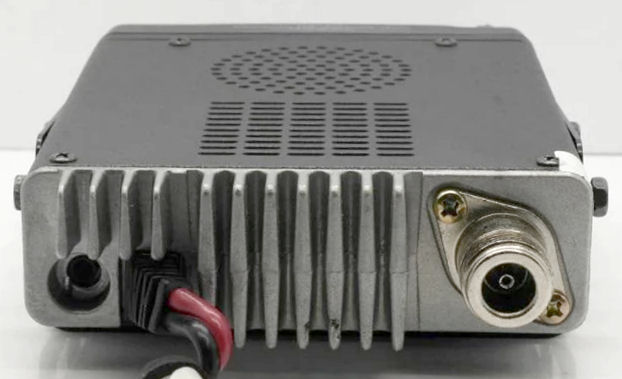

Yaesu FT-90R
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz
RX: 100-230 / 300-530 / 810-1000 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 50/35 W
Lo: ?/? W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 350-? mA
TX: Max 9.5 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
100*30*138 mm |
| Weight: |
640 gr |
| Manufactured: |
19xx-19xx |
| Other: |
European Version
Detatchable Front |
| Related Documents: |
User Manual (638 kb) |
 |
